Install and Use Microsoft Graph (Developer Machine)

by

The document provides a simple guide to how to install and use the Microsoft Graph and Microsoft Exchange Online PowerShell modules to interact with Microsoft 365 infrastructure for the purposes of administering the Microsoft 365 infrastructure and applications; i.e. how to setup your Developer Machine.

You may be able to install modules without administrative rights by adding the “scope” argument, for example:

Install-Module -name <whatever> -scope CurrentUser

The Microsoft Graph is essentially an API that allows you as an administrator/developer to access and manipulate Microsoft 365 infrastructure via the API. When using Microsoft Graph you require your account to have the relevant privileges.

Step 1 – Install Module

To install the Module run PowerShell as an Administrator.

Install-Module -Name Microsoft.Graph

Answer “Yes” to trusting the untrusted repository if/when prompted, then wait for the installation to complete (it may take a few minutes to complete).

Step 2 – Example Connection

To verify that the connection has been made successfully, we’ll connect to Microsoft 365, in this example we’re just connecting with the Scope of “User.Read.All”.

Why use Scopes? The use of Scope ensures that you are restricting what your account will do with the connection it has, its part of OAuth2 and is good security practice. If you’re going to, as in this example, just obtain a list of users within Entra ID, i.e. just reading information, by connecting with a “User.Read.All” scope we don’t risk accidentally changing information.

First import the module, you may not need to do this if you’ve just installed it, but subsequently you may need to do this before running the connect:

Import-Module -Name Microsoft.Graph

Now make the connection.

Connect-MgGraph -Scopes "User.Read.All" [-Tenant-Id <Tenant ID>]

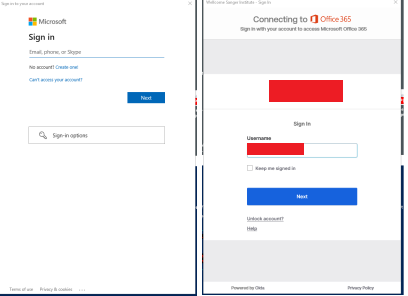

You’ll now see a box asking you to login. You’ll then be redirected to your SSO provider (e.g. OKTA) where you may need to provide a MFA challenge response.

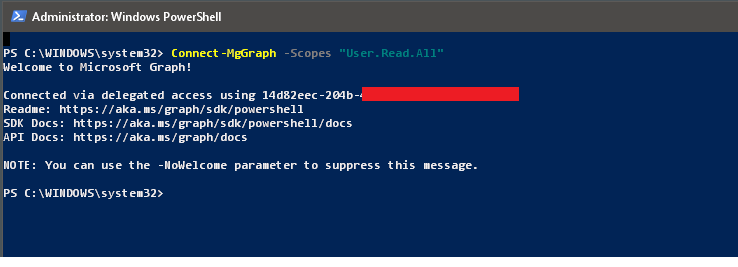

Once connected you should see the following:

Step 3 – Perform a Test Query

Let’s get a list of all our Microsoft 365 user accounts, so now run the following:

$users = Get-MgUser
$users | Select-Object DisplayName, UserPrincipalName, Mail

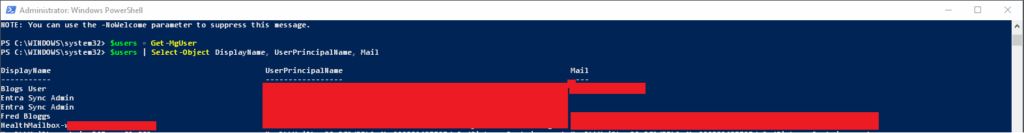

And we now get our output:

Step 4 – Disconnect

Once you’ve finished your work, you then need to disconnect, although not essential it is recommended.

Disconnect-MgGraph

Additional Notes

Install-Module PowerShellGet -Force
Install-Module ExchangeOnlineManagement
Import-Module ExchangeOnlineManagement

Install-Module MSOnline
Install-Module AzureAD
Import-Module AzureAD
